Begin with left–right symmetry around the listening position. Give both monitors comparable nearby boundaries, equal listening distances and a consistent acoustic-axis height. For conventional stereo, an approximately equilateral triangle gives a 60-degree included angle at the listener. Follow the manufacturer’s guidance rather than assuming the tweeter is always the reference axis. ²

In a rectangular room, try the setup against the short wall, playing along the length, as a baseline. Keep the desk and screens from obstructing the direct sound. Test alternative positions instead of treating any layout rule—including the familiar “38% rule”—as a guarantee. Boundary distances and listening position interact; a sensible-looking room can still measure poorly. ³

A useful experiment is to mark two or three candidate seat positions with tape, then compare them at the same playback level. Move deliberately and keep notes. A change that improves one bass note but damages the rest of the working range is not automatically progress.

VIEW FIGURE ↗

FIG. 01 A symmetrical triangle is a starting point, not a room-specific solution. The 1.50 m distance is illustrative; use the monitor’s acoustic-axis and listening-distance guidance.

Room modes are resonant pressure patterns determined by the room’s dimensions, shape and boundaries. They do not simply add “more bass.” They create frequency- and position-dependent differences: the same note can be strong in one location and weak in another. ⁴

For one idealised dimension bounded by rigid, parallel surfaces, the axial resonances follow:

Using that model, a 4.80 m dimension gives its first three axial modes at approximately 35.7, 71.5 and 107.2 Hz. Width and height contribute other families, and tangential and oblique modes involve multiple dimensions. These calculations identify candidates to investigate, not the final response at your chair. ⁴⁵

There is no universal 300 Hz border at which modes stop mattering. The transition towards more densely overlapping resonances depends on room volume and damping; the Schroeder frequency is an approximate guide, not an on/off switch. ⁵

VIEW FIGURE ↗

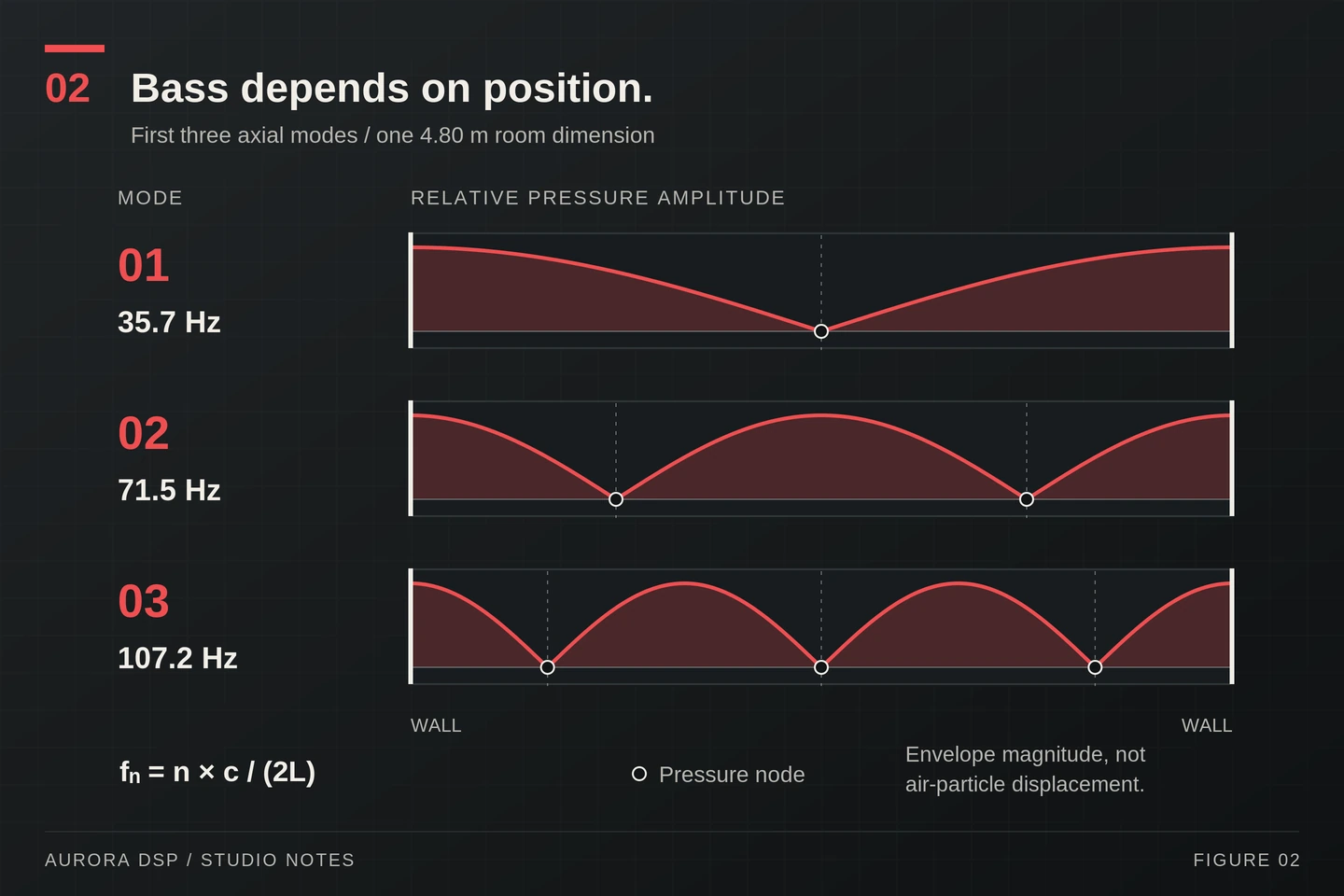

FIG. 02 Calculated axial pressure envelopes for one idealised 4.80 m dimension: 35.7, 71.5 and 107.2 Hz at c = 343 m/s. These are mode shapes, not a measured frequency response.

Listen for both uneven level and lingering bass. A resonance can make one note dominate and overlap the next. Frequency response and decay therefore need separate attention. ²¹

Speaker-boundary interference response, or SBIR, describes interference between direct sound and reflections from nearby boundaries. It is established acoustics, not a new technology. The wall behind the speakers, floor, ceiling and other surfaces can create different path lengths and therefore frequency-dependent reinforcement or cancellation. ²

For a simplified, strongly reflecting front-wall case with near-normal geometry, the first cancellation is approximately c/(4d), where d is the low-frequency source’s distance from the boundary. Calculated examples are 343 Hz at 0.25 m, 171.5 Hz at 0.50 m and 85.8 Hz at 1.00 m. The approximation is not a complete placement prescription.

VIEW FIGURE ↗

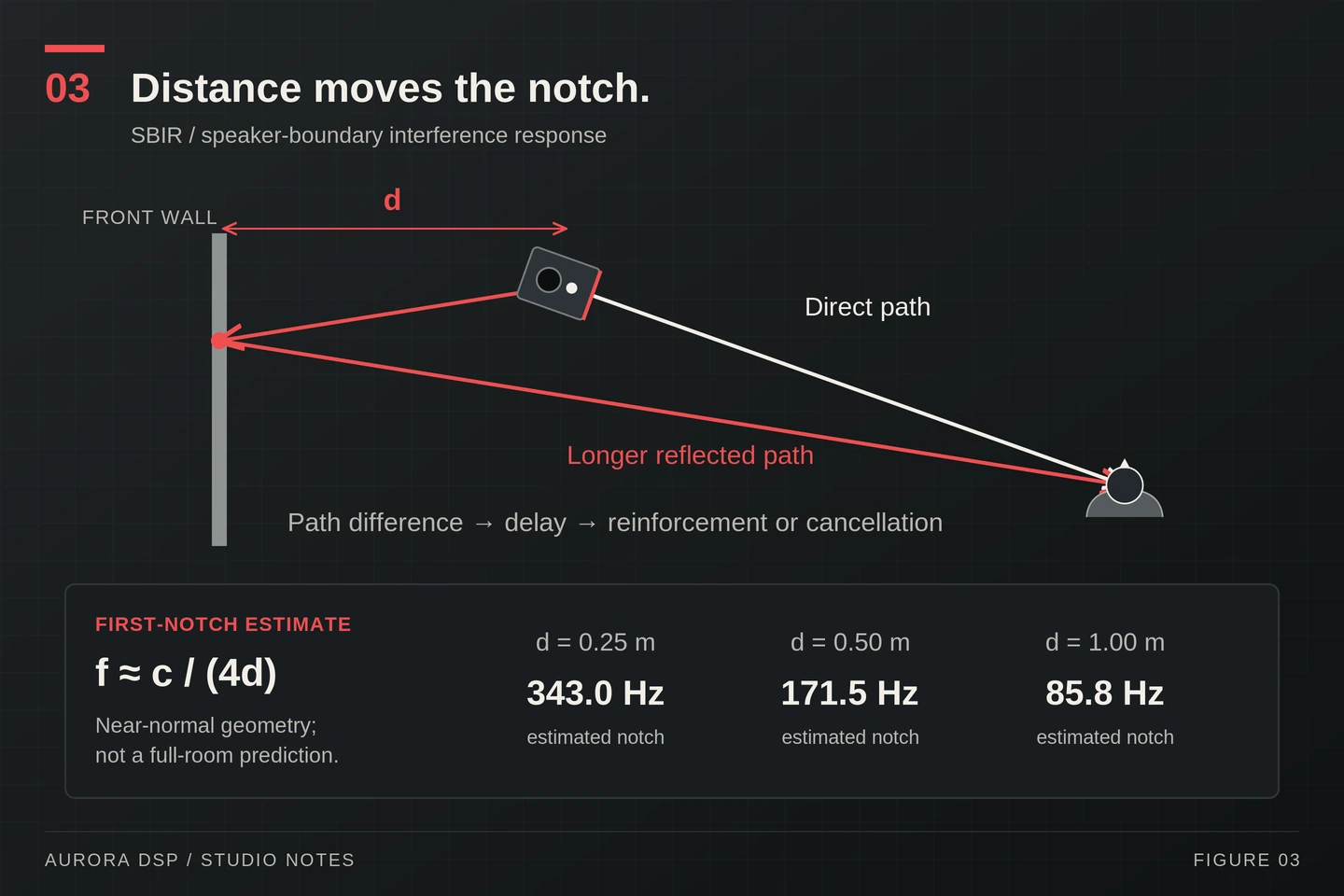

FIG. 03 A reflected path is longer than the direct path. The c/(4d) examples assume near-normal geometry and a strongly reflecting boundary; the full room requires measurement.

Moving monitors farther from the wall is not automatically better: it can move a cancellation into a more troublesome band. Close placement introduces other trade-offs, including boundary gain, port clearance and cooling requirements. Start with the manufacturer’s recommendations, then measure the actual system. ³

A room does not need an obvious echo to interfere with monitoring. Strong early reflections can alter tonal balance through comb filtering and complicate stereo and depth judgements. Their importance depends on level, arrival time, spectrum and direction—not merely on whether a peak exists in a graph. ⁶

For a practical first pass, sit at the listening position while someone slides a mirror along a side wall. Mark every area where either monitor is visible. Repeat on the other wall, and allow for normal head movement rather than treating the result as a pin-sized target. This locates candidate specular reflection zones; it is not a low-frequency model. ²⁰

VIEW FIGURE ↗

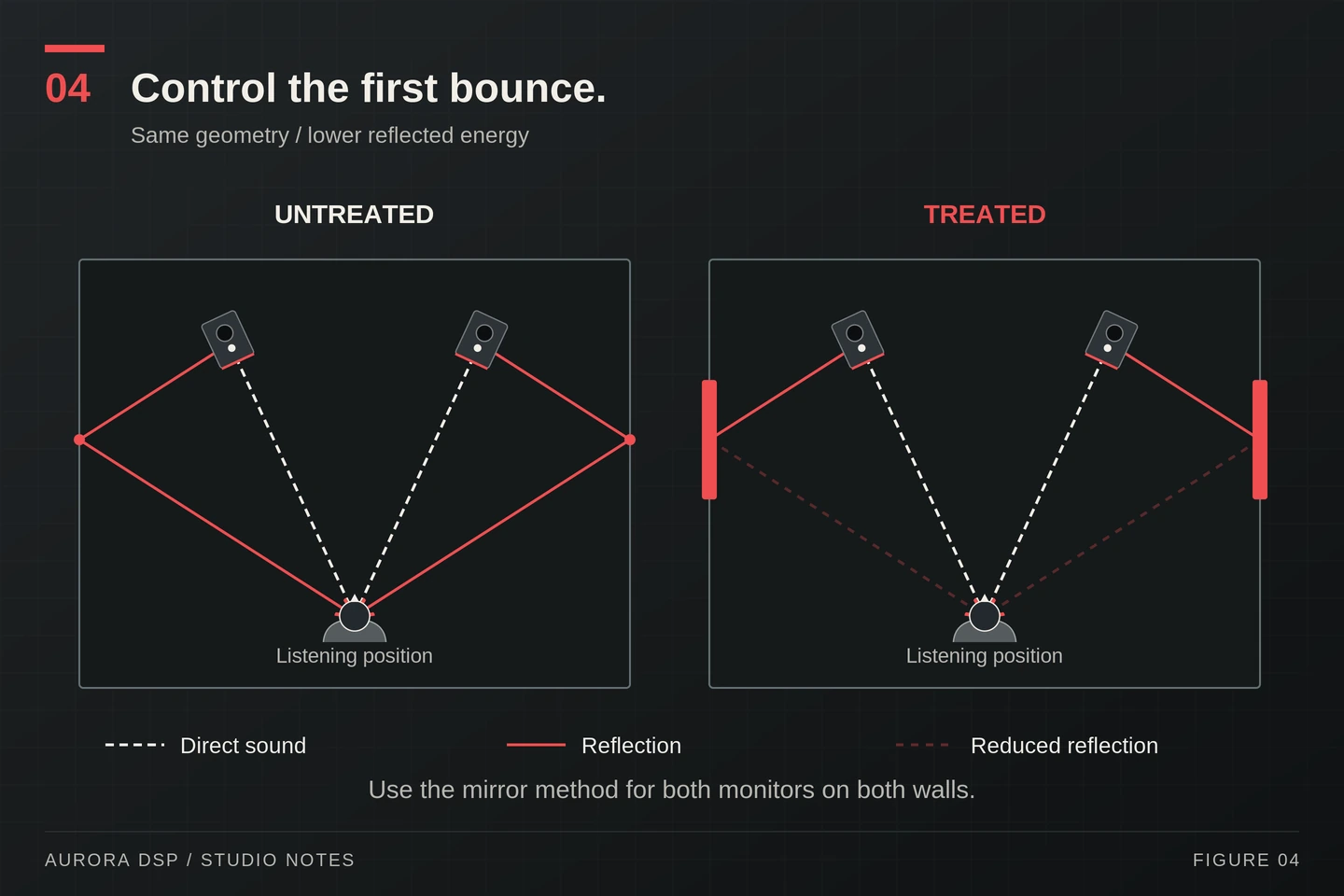

FIG. 04 Treatment reduces the reflected component; it does not make every reflection disappear. Find each monitor’s reflection zone on both side walls, not just one point per wall.

Check the result with the impulse-response envelope, usually called the energy–time curve (ETC). Peaks after the direct arrival help locate reflections. For example, an arrival 3 ms later corresponds to approximately 1.03 m of additional travel at 343 m/s. That constrains possible paths; it does not, by itself, identify which surface caused the reflection. ⁷

The objective is controlled, useful room behaviour—not a blanket rule that every reflection must disappear or sit below one universal dB threshold.

The ceiling creates another reflection path between the monitors and your ears. A broadband ceiling cloud is a practical way to reduce that contribution. Marc Mozart’s archived budget guide gives the ceiling the same basic attention as the side walls—a useful priority, independent of its historical prices. ⁸

Locate the reflection zone across the speaker-to-listener area, rather than hanging a small panel only above the chair. Core thickness and an air gap both affect the useful absorption range; neither should be selected only for appearance. ⁹

VIEW FIGURE ↗

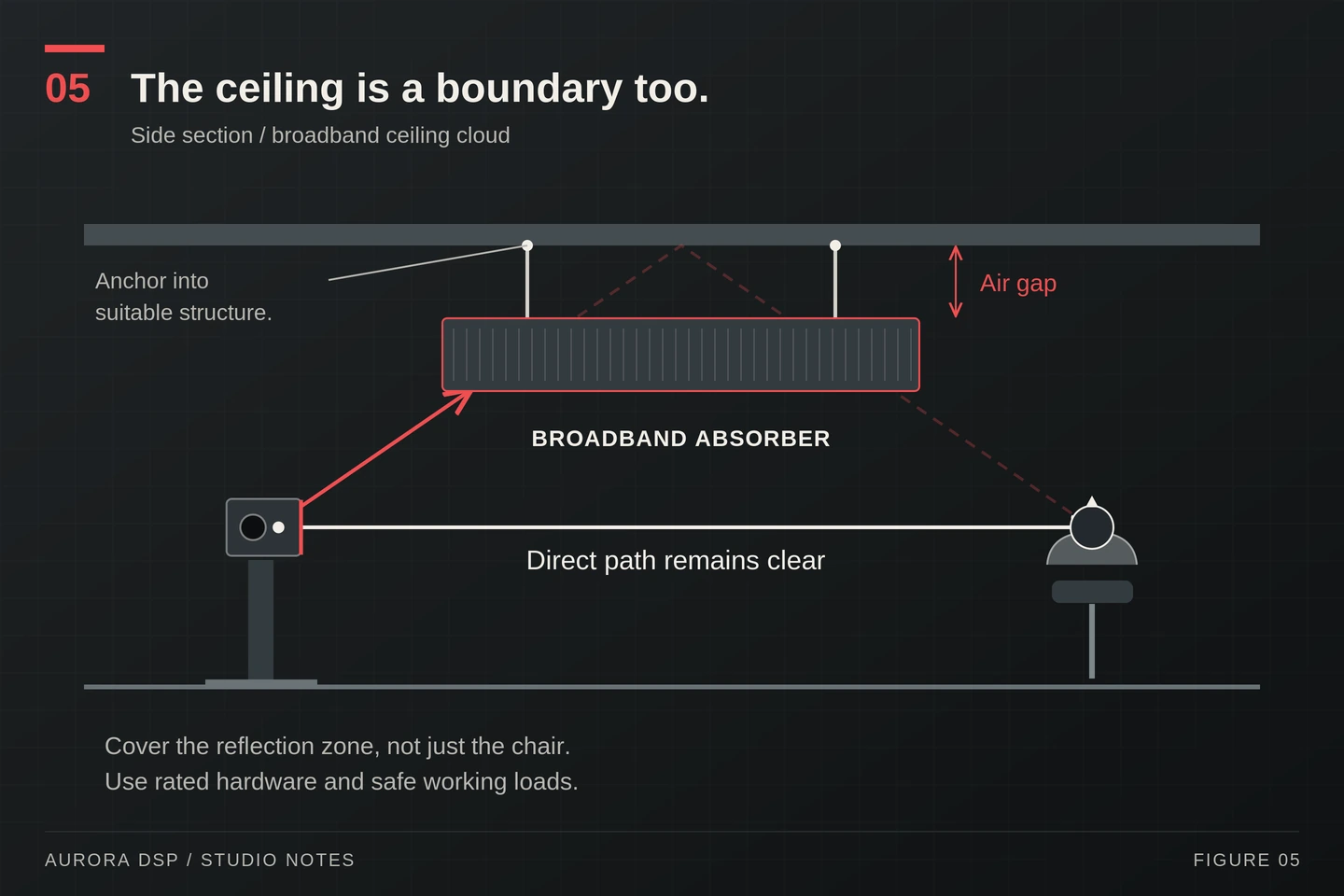

FIG. 05 Place the cloud over the reflection zone between monitors and listener. Air gaps and core depth both affect performance. Suspension must be designed for the actual structure and load.

Overhead treatment is also a structural job. Use load-rated fixings appropriate to the actual ceiling construction, allow for the full assembly weight and follow the mounting system’s instructions. Get competent help when the structure or safe working load is uncertain. Do not improvise a suspension from packaging wire or adhesive alone.

Thin treatment can reduce upper-frequency reflections while leaving lower-frequency problems largely intact. The result may be darker without becoming more accurate. Thick panels are needed for more useful low-frequency absorption; covering every visible wall is not the same as controlling the room. ²²

For a broadband DIY panel, 100–200 mm of suitable porous material, sometimes with an air gap, is a reasonable construction range to investigate—not a guarantee of deep-bass absorption. Compare tested performance for the actual thickness, facing and mounting arrangement. A material’s density alone is not a reliable design specification: flow resistivity, depth and boundary conditions determine how the absorber interacts with sound. ⁹

Deep porous traps and tuned resonant absorbers are different tools. Porous systems dissipate energy as air moves through the material; resonant designs can target a narrower low-frequency range. Boundary pressure maxima do not mean that an arbitrarily thin porous panel works well when glued into a corner. Corners are useful partly because they can accommodate substantial absorber depth. ⁹²⁰

VIEW FIGURE ↗

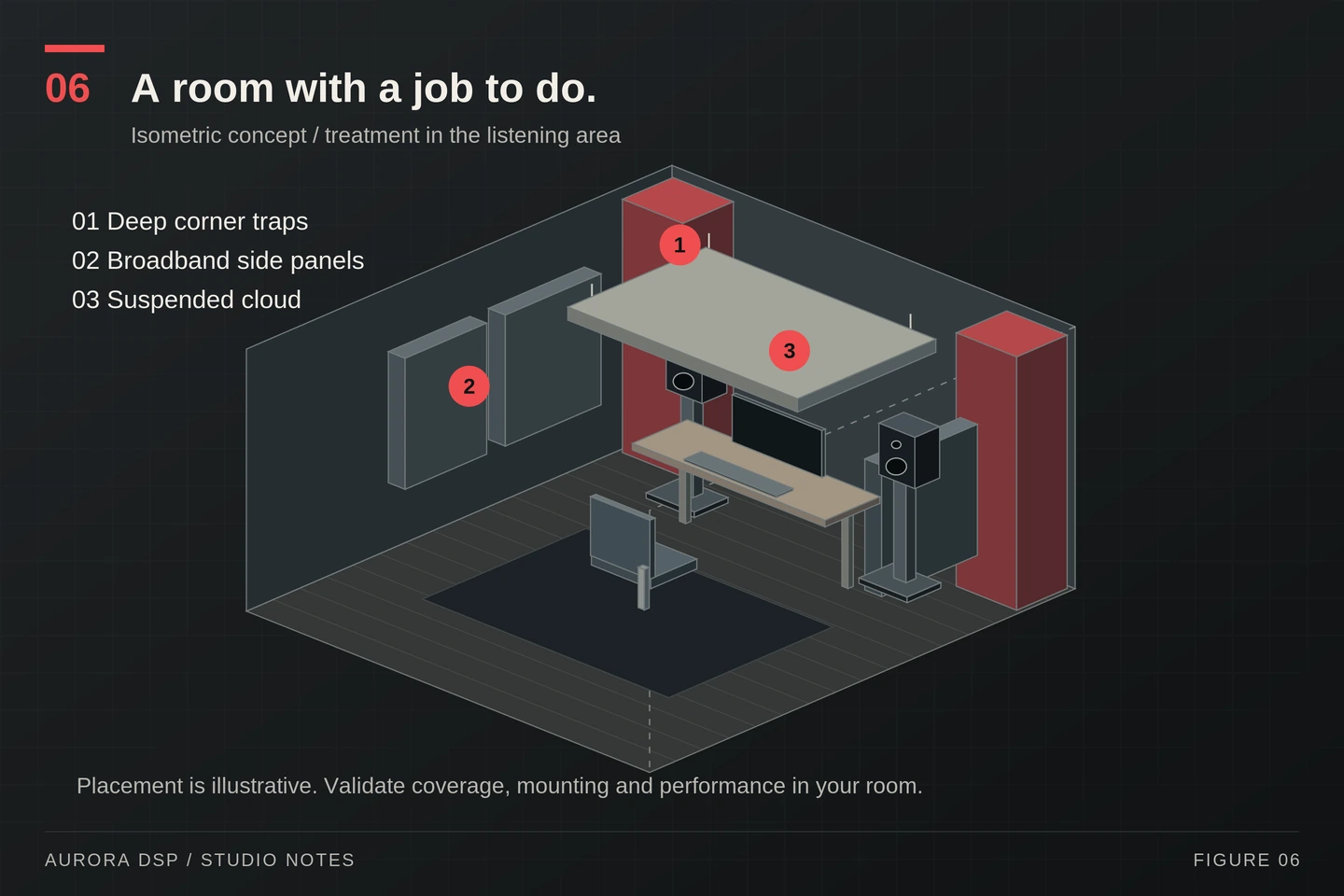

FIG. 06 Concept illustration, not a photograph or construction drawing. It combines deep corner treatment, broadband side panels and a cloud; actual quantities and positions depend on the room.

Marc Mozart’s budget guide prioritises substantial corner absorption. Keep that priority, not a fixed insulation-pack recipe or historical price promise. Evaluate the actual construction and verify its result. ⁸

For permanent DIY treatment, use a stable frame, a suitable acoustically permeable facing and a construction that contains loose fibres. Follow the chosen insulation’s handling instructions, including dust control, ventilation and appropriate protection while cutting or installing it. Do not assume every building-insulation product or upholstery fabric is suitable for an occupied studio. ¹⁰

A diffuser redistributes reflected energy rather than simply removing it. That can be useful when its operating bandwidth and distance from the listener fit the design. It does not fix a bass null, and a random uneven surface is not automatically a well-performing diffuser. ¹¹

In a small room, a diffuser too close to the listener can produce unwanted local effects instead of an even distribution of sound. Check the particular design’s required distance and frequency range. Sort out the major low-frequency and early-reflection problems before buying diffusion because it looks like a professional studio. ¹¹

A calibrated measurement microphone, a stand and Room EQ Wizard are a practical measurement starting point. A USB measurement mic simplifies the interface requirement; an analogue measurement mic needs a compatible input chain. Load the appropriate calibration data and match the microphone orientation to the calibration instructions. ¹²¹³

Build a repeatable baseline.

Temporarily bypass correction and enhancement processing when diagnosing the untreated system, and record any deliberate monitor settings. Put the microphone where your head normally is. Check levels, avoid clipping and begin at a conservative playback level. Measure left and right separately before assessing the combined system. Use the same settings for comparisons. ¹³¹⁴

For subwoofer integration or phase comparisons between measurements, use a consistent timing reference. REW’s acoustic timing signal must come from a speaker able to reproduce its high-frequency signal—not from a subwoofer alone. Keep the measurement area quiet and step away from the microphone. ¹²¹⁴

Save the position and configuration with each measurement. Wróblewski’s 2015 case study explicitly documented measurement setups with photographs; that is a useful habit to retain without treating the room’s reported results as transferable to yours. ²⁰

VIEW FIGURE ↗

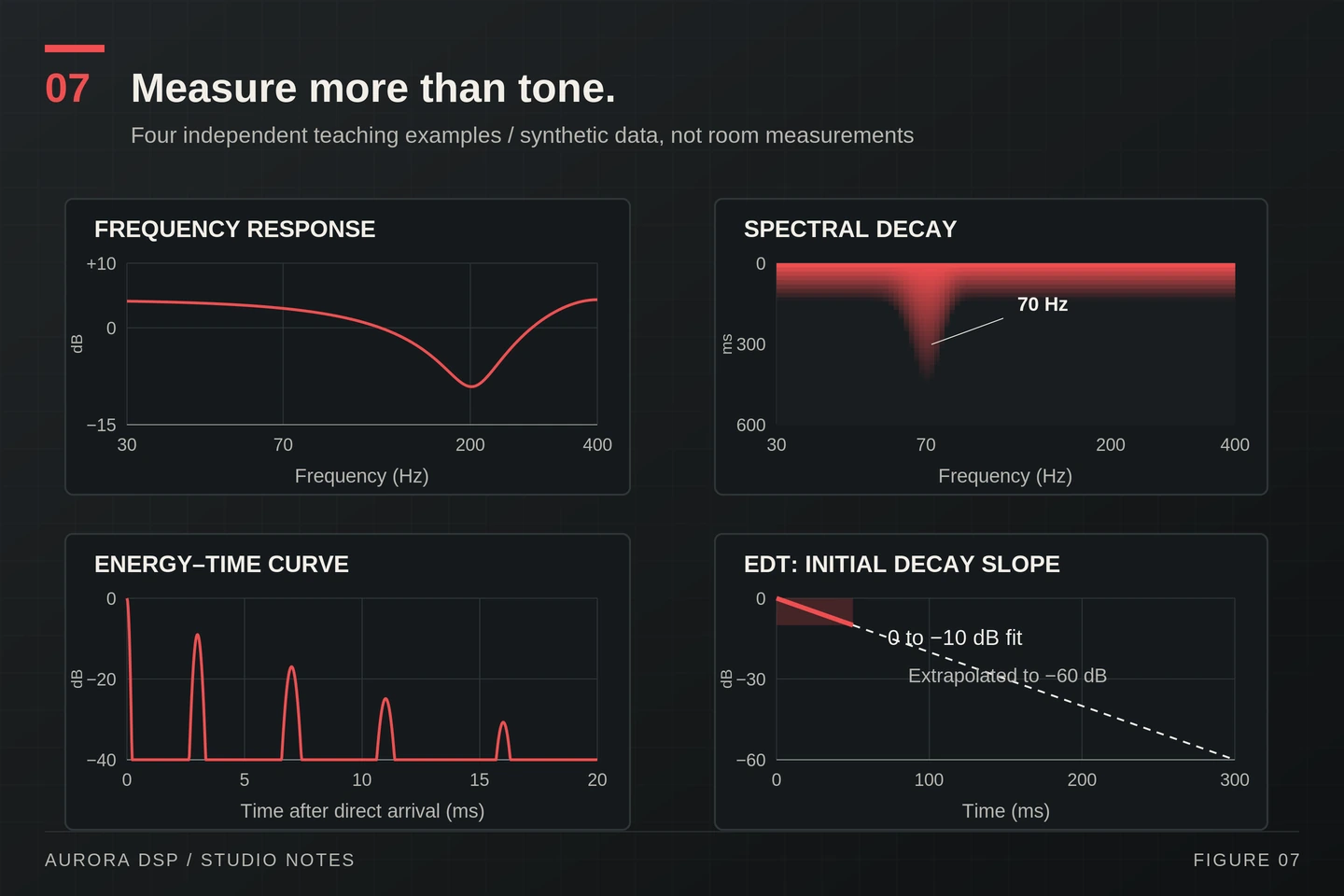

FIG. 07 Synthetic teaching examples, not REW screenshots, before-and-after results or measurements of an Aurora DSP studio. Each plot illustrates a different diagnostic question; the four plots do not describe one measured system.

Ask a different question of each plot.

EDT uses the initial 0 to −10 dB energy-decay slope, conventionally expressed as a 60 dB extrapolation. T20 and T30 use the −5 to −25 dB and −5 to −35 dB ranges respectively. In small rooms at low frequencies, a diffuse-field RT60 interpretation is often inappropriate; inspect frequency-specific decay instead of declaring the entire room “0.3 seconds.” ¹⁶

Finally, measure a few nearby microphone positions. Do not replace individual traces with an average so early that you lose sight of a fragile, single-point result. You need a usable listening area, not a curve that collapses when you lean forward. ¹⁷

Room correction is not limited to a token final improvement. Correctly designed filters can address minimum-phase response components and improve the corresponding time behaviour of the measured speaker–room response. That is different from changing the room’s passive absorption or fixing every listening position. The statement “EQ can never improve ringing” is too absolute. ¹⁷

Active multi-speaker control is another category. Dirac describes ART as a MIMO system that coordinates speakers to counter low-frequency room effects, including prolonged decay, within its operating range. That is a manufacturer-described capability, not proof that every room, layout or seat will achieve the same improvement. It is also not equivalent to ordinary two-channel EQ. ¹⁸

Our practical default is placement and physical treatment first, measured correction next. In a rented room with strict limits, calibration may provide useful improvement earlier. Preserve headroom, avoid aggressive narrow corrections to position-sensitive high-frequency ripples, and verify the result around the listening position. ¹⁷

A subwoofer can be an optimisation tool.

Separate low-frequency sources can offer placement options that the main monitors do not. More than one sub can help reduce seat-to-seat variation, but only with suitable positioning, routing and optimisation. Check crossover integration, relative level, delay and polarity; a flat sub response alone says little about how it combines with the mains. ¹⁹

Multi-Sub Optimizer is one specialised option for compatible multi-sub systems, not a universal processor for any signal routing. Measure with the required timing reference and verify its predicted result with a new measurement. ¹⁹

Do not split a modest budget across ten decorative fixes. Identify the largest remaining limitation and spend against it. That might mean a microphone and a more useful layout before any new panel. It might mean deeper low-frequency treatment rather than more high-frequency absorption. The decision should follow the evidence, not the room’s appearance.

VIEW FIGURE ↗

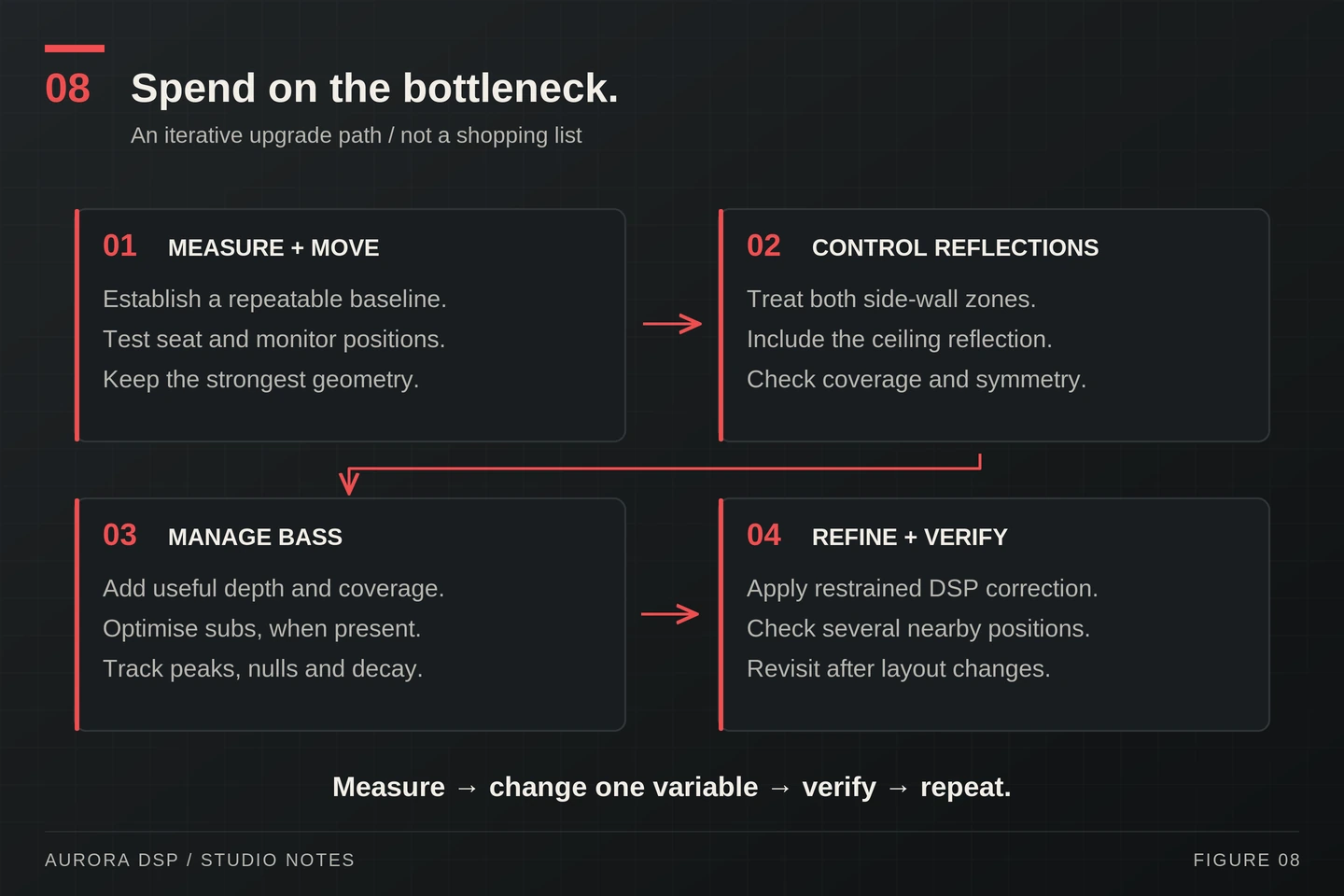

FIG. 08 Spend on the largest remaining problem. Measurement and verification continue throughout; the sequence is a planning framework, not a mandatory product list.

This is an editorial planning framework, not a universal installation sequence. A dominant low-frequency issue may deserve attention before additional reflection treatment. Re-measure after each meaningful change.

A simple listening exercise can reveal where to investigate. At a low, fixed playback level, move through bass test tones within your monitors’ usable range, then repeat from a nearby position. Mozart’s archived guide uses this kind of exercise to make low-frequency variation obvious. It is a listening check—not a calibrated frequency-response measurement. ⁸

Do not turn up an inaudible low tone to “find” it. Loudspeaker roll-off, room cancellation and hearing sensitivity all affect what you perceive. Replace subjective guesses with calibrated measurements before drawing technical conclusions. ⁸¹³

For the final working check, use familiar references at matched levels. Listen for whether the kick and bass relationship is easier to judge, the centre stays stable as you work, and reverb decisions survive outside the room. Keep a short decision log rather than relying on an exciting first impression.

Also check on familiar headphones or a second trusted system. The objective is not identical sound everywhere. It is fewer unexplained surprises and fewer compensating mix moves.

That is the standard worth building towards: not maximum treatment, not a perfectly straight graph, but a monitoring reference that lets you work faster and commit with more confidence.
